VSM004 BLE Communication Packet Command

VSM004 Data Flow

VSM004 is an USB serial port device. It helps to simplify the complicated BLE protocol to several serial port commands

scan
connect
disconnect
BLE command write and data receive

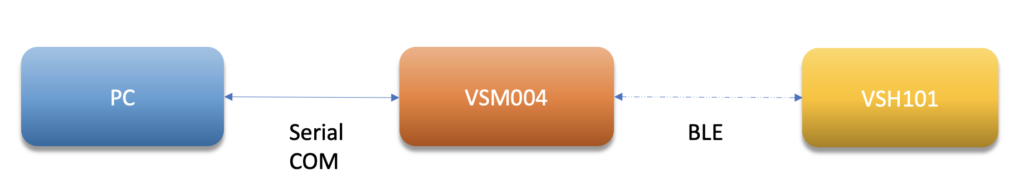

Here is a simple communiucation protocol chart to make you understand the command and data flow.

VS-ECG will send serial com port command to VSM004 and VSM004 will help to translate the simple serial com commands to complicated BLE protocols and send the request data to VSH101.

After the VSH101 finished the request and the data will be sent back via BLE to VS Dongle.

VSM004 Com Port Setting

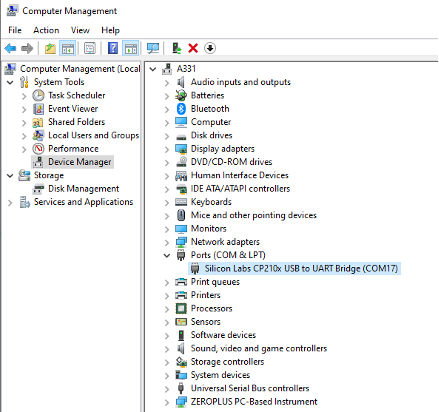

In this case the connect to computer first, connect the BLE Dongle to the computer via USB. When viewed through the device administrator, the computer will have an additional ComPort (as shown in the figure below), which is the COM used by the computer.

Example :

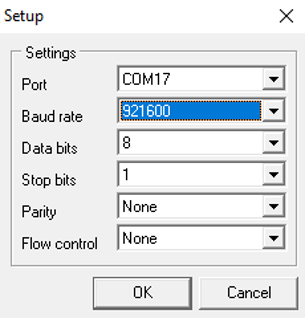

Com port Setting 921600 8N1 – 921600 baud, 8 data bits, no parity, and 1 stop bit.

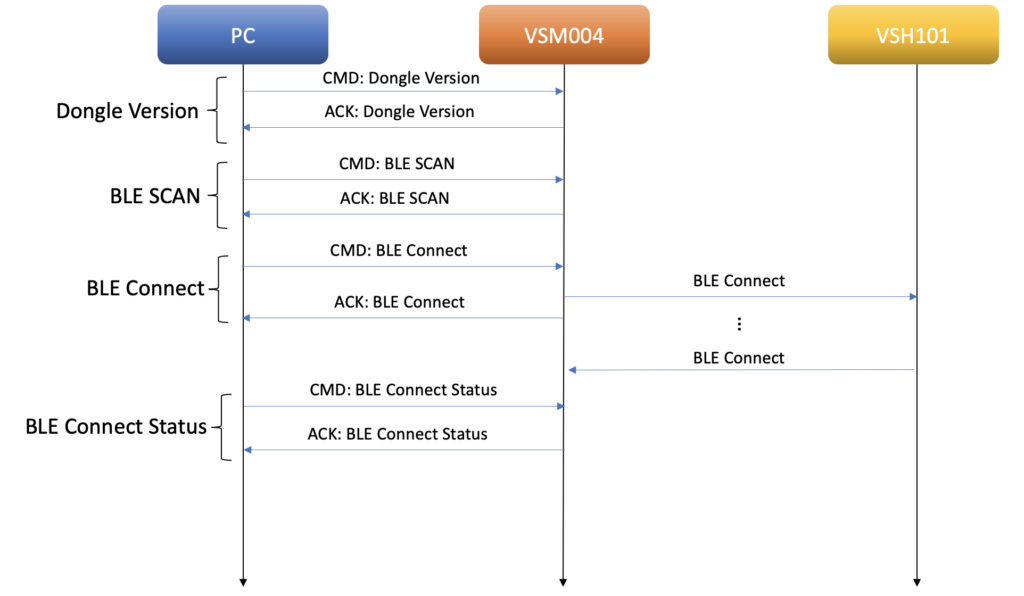

VSM004 BLE Communication Flow

The PC can communicate with the VSH101 device via the following instructions from VSM004

BLE scan
BLE connect
BLE connect status
BLE disconnect
BLE command write and data receive

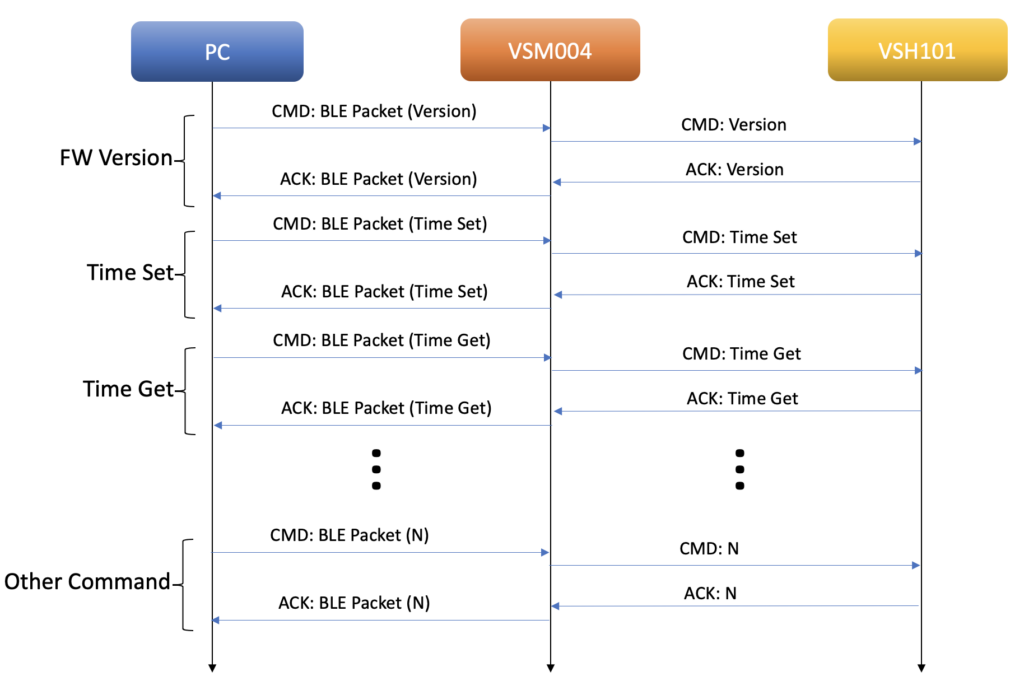

PC begins communication with BLE via VSM004 connection

When VSM004 BLE is connected, BLE communication packet can be used to communicate。

VSM004 Packet Format:

PC send to VSM004 Packet Command format

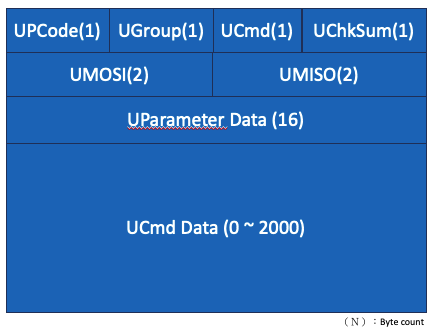

Transmit Packet Format:

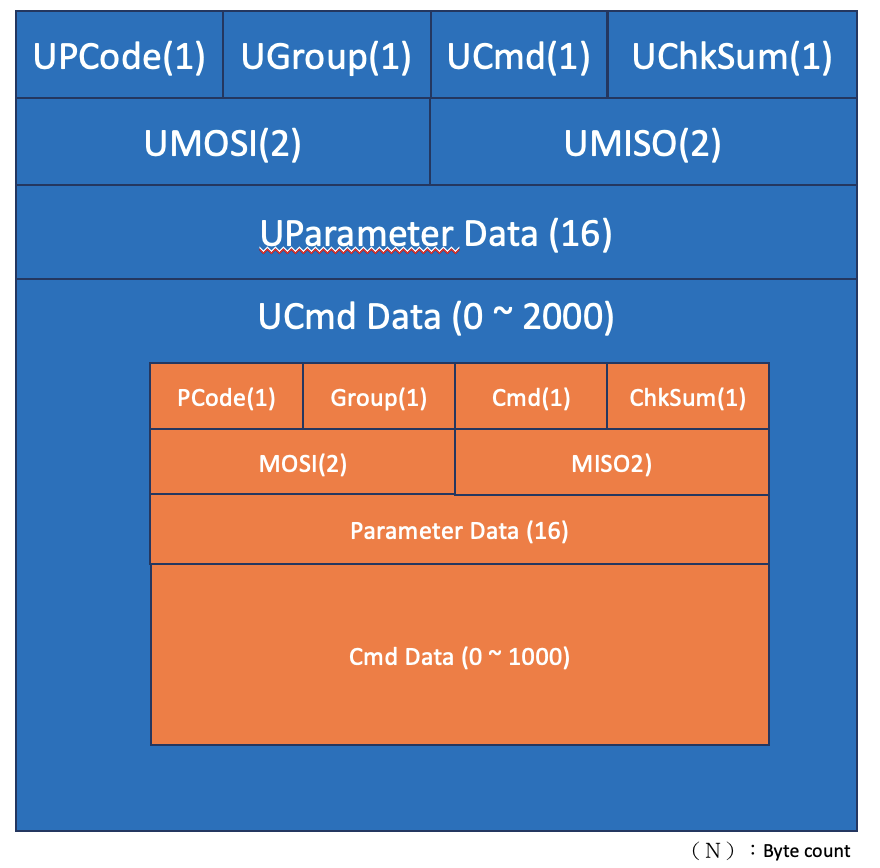

Transmit VSH101 BLE Packet Format:

UPCode : Transmit and receive the packet command is same value, set same the ‘Cmd’ data.

UGroup : The Group Command byte.

UCmd. : The Group sub Command byte.

UChkSum : The (Check Sum) is the sum of bytes % 256 of the entire packet.

UMISO : Setting the notify receive length.(Little Endian)

UMOSI : Setting the write command data length.(Little Endian)

UParameter Data : The parameter setting.(Little Endian)

UCmd Data : The data for command.(Little Endian)

Check Sum Data Get Example Code:

Create Transmit VSH101 Packet Data Flow :

1.Create [VSM004 -> VSH101] packet data : “BLE Command Data”

2.Calculate checksum of “BLE Command Data” packet : CheckSum

3.Insert the CheckSum to ”ChkSum” field of “BLE Command Data” packet

4.Create [PC -> VSM004] packet data : “UART Command Data”

5.Inset “BLE Command Data” to ”UCmdData” field of “UART Command Data” packet

6.Calculate checksum of “UART Command Data” packet : CheckSum

7.Insert the CheckSum to ”UChkSum” field of “UART Command Data” packet

PC receive form VSM004 Pcket Command format:

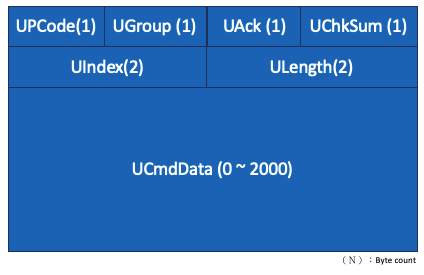

Receive Packet Format:

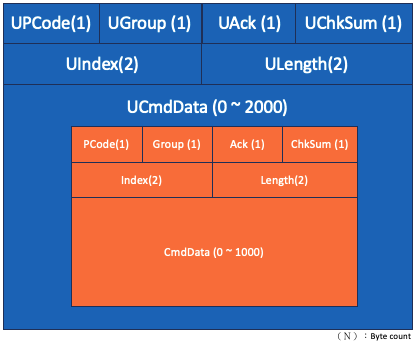

Receive VSH101 BLE Packet Format:

UPCode. : Received is the same as that transmitted.

UGroup : The group same the write command.

UAck : Confirm that the ‘Ack’ byte is ‘A’, then the command is correct this time and reply, otherwise will receive ‘N’.

UChkSum : (check sum) is the sum of bytes % 256 of the entire packet.

UIndex : The receive data memory index.(Little Endian)

ULength : The packet data length.(Little Endian)

UCmd Data : The data for command.(Little Endian)

VSM004 Packet Command Table

Name	PCode	Group	Cmd	Description
Dongle FW Version	0x00	0xC0	0x00	VSM004 FW Version & module name
BLE Scan List Table	0x10	0xC2	0x10	get BLE scan table
BLE Connect Device	0x20	0xC2	0x20	Set BLE connect device
BLE Disconnect Device	0x2F	0xC2	0x2F	Set BLE Disconnect device
BLE Connect Status	0x66	0xC2	0x66	Get BLE Connect status 1 : BLE connected 0: BLE disconnected
BLE Communication Packet	0x61	0xC2	0x61	BLE Communication packet command

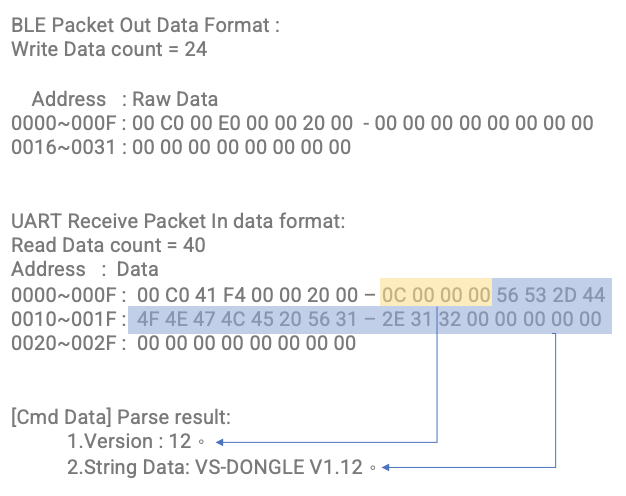

1. Dongle FW Version Packet Command

Name	Hex Data
UPCode	0x00
UGroup Id	0xC0
UCmd	0x00
UCheck sum	0xE0
UMOSI	0x0000
UMISO	0x0020
UParameter Data	00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
UCmd Data

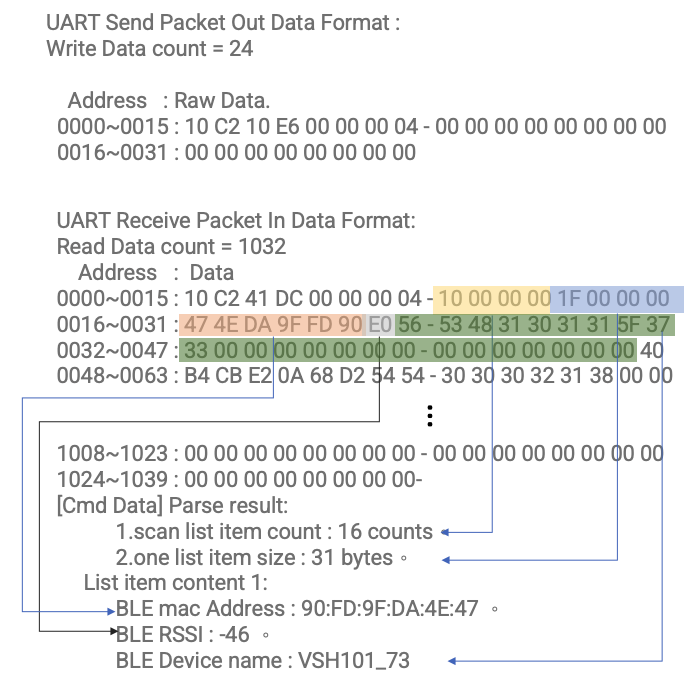

2. BLE Scan List Table Packet Command

Name	Hex Data
UPCode	0x10
UGroup Id	0xC2
UCmd	0x10
UCheck sum	0xE6
UMOSI	0x0000
UMISO	0x0400
UParameter Data	00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
UCmd Data

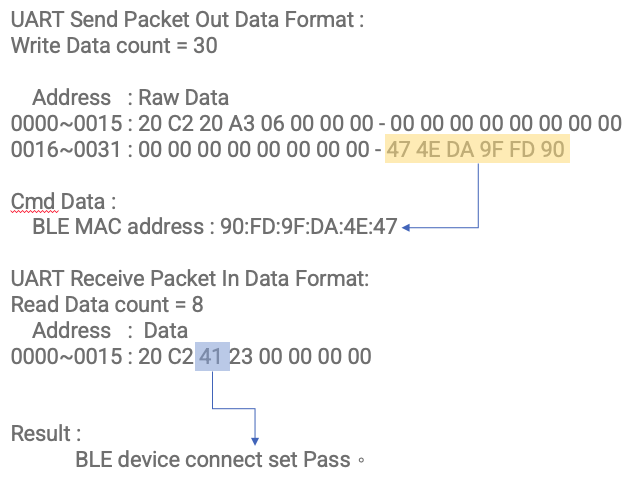

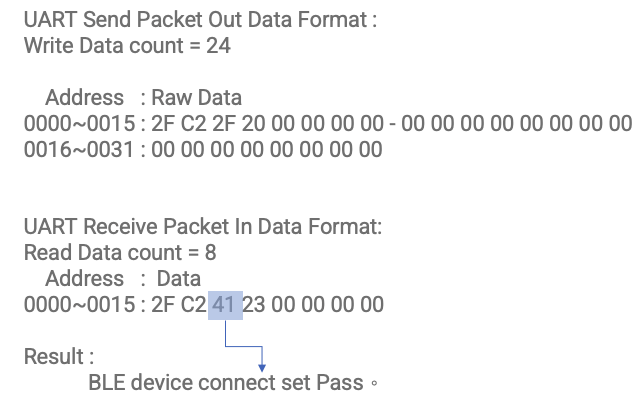

3. BLE Connect Device Packet Command

Name	Hex Data
UPCode	0x20
UGroup Id	0xC2
UCmd	0x20
UCheck sum	0xA3
UMOSI	0x0006
UMISO	0x0000
UParameter Data	00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
UCmd Data	47 4E DA 9F FD 90

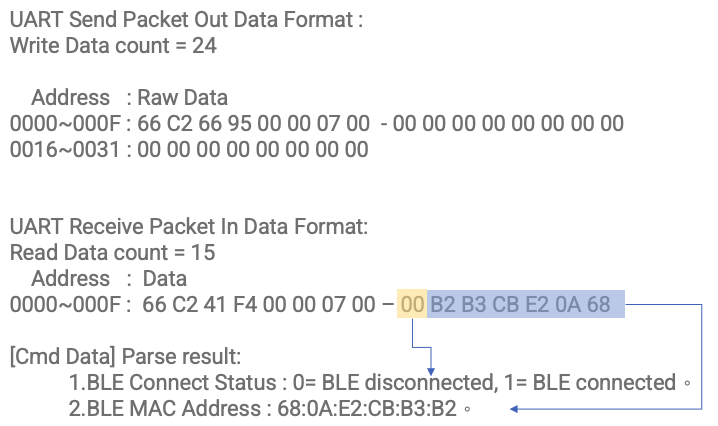

4. BLE Connect Status Packet Command

Name	Hex Data
UPCode	0x66
UGroup Id	0xC2
UCmd	0x66
UCheck sum	0x95
UMOSI	0x0000
UMISO	0x0007
UParameter Data	00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
UCmd Data

5. BLE Disconnect Packet Command

Name	Hex Data
UPCode	0x2F
UGroup Id	0xC2
UCmd	0x2F
UCheck sum	0x20
UMOSI	0x0000
UMISO	0x0000
UParameter Data	00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
UCmd Data

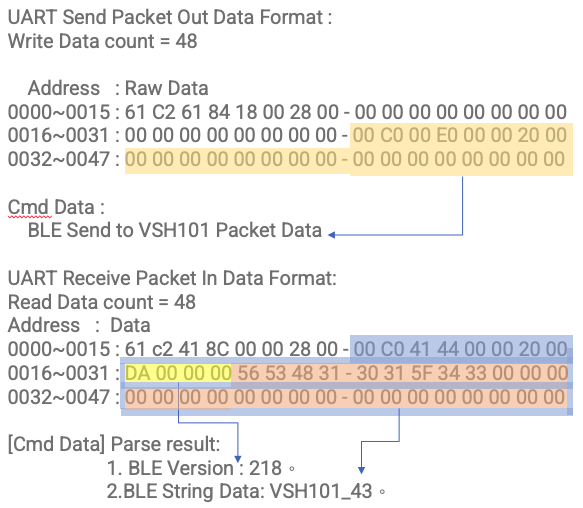

6. BLE Communication Packet Command

Name	Hex Data
UPCode	0x61
UGroup Id	0xC2
UCmd	0x61
UCheck sum	0x84
UMOSI	0x0018
UMISO	0x0028
UParameter Data	00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
UCmd Data	00 C0 00 E0 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

7. Com port BLE Communication Packet (VSC Mode Type 1 Flow)

7.1 BLE Disconnect

Com port Out Data count = 24

0000 ~ 000F : 2F C2 2F 20 00 00 00 00 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – xx xx xx xx xx xx xx xx

Com port In Data count = 8

0000 ~ 000F : 2F C2 41 32 00 00 00 00 – xx xx xx xx xx xx xx xx

7.2 BLE Scan List Table

Com port Out Data count = 24

0000 ~ 000F : 10 C2 10 F4 00 00 0F 03 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – xx xx xx xx xx xx xx xx

Com port In Data count = 791

0000 ~ 000F : 10 C2 41 90 00 00 0F 03 – 11 00 00 00 1F 00 00 00

0010 ~ 001F : 8F B9 90 CC CC CC F2 56 – 53 47 31 30 31 5F 30 31

0020 ~ 002F : 5F 33 30 32 30 30 30 32 – 00 00 00 00 00 00 00 F1

0030 ~ 003F : B9 90 CC CC CC D2 56 53 – 48 31 30 31 5F 30 34 33

0040 ~ 004F : 5F 32 32 30 39 30 30 30 – 32 38 00 00 00 00 2E 4B

0050 ~ 005F : 26 14 2E 84 C4 56 53 54 – 31 30 33 5F 30 5F 30 30

0060 ~ 006F : 30 30 32 36 00 00 00 00 – 00 00 00 00 00 B0 4A 26
…

02F0 ~ 02FF : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0300 ~ 030F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0310 ~ 031F : 00 00 00 00 00 00 00 xx – xx xx xx xx xx xx xx xx

7.3 BLE Connect device

Com port Out Data count = 30

0000 ~ 000F : 20 C2 20 A6 06 00 00 00 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – F1 B9 90 CC CC CC xx xx

Com port In Data count = 8

0000 ~ 000F : 20 C2 41 23 00 00 00 00 – xx xx xx xx xx xx xx xx

7.4 BLE Connect Status

4. BLE Connect Status (interval 200 mSec fetch 1 time then check is connected)

Com port Out Data count = 24

0000 ~ 000F : 66 C2 66 95 00 00 07 00 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – xx xx xx xx xx xx xx xx

Com port In Data count = 15

0000 ~ 000F : 66 C2 41 0E 00 00 07 00 – 00 F1 B9 90 CC CC CC xx

…

Com port Out Data count = 24

0000 ~ 000F : 66 C2 66 95 00 00 07 00 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – xx xx xx xx xx xx xx xx

Com port In Data count = 15

0000 ~ 000F : 66 C2 41 0F 00 00 07 00 – 01 F1 B9 90 CC CC CC xx

7.5 BLE Communication Packet (Device Version Get)

Com port Out Data count = 48

0000 ~ 000F : 61 C2 61 84 18 00 28 00 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – 00 C0 00 E0 00 00 20 00

0020 ~ 002F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

Com port In Data count = 48

0000 ~ 000F : 61 C2 41 8C 00 00 28 00 – 00 C0 41 44 00 00 20 00

0010 ~ 001F : DA 00 00 00 56 53 48 31 – 30 31 5F 34 33 00 00 00

0020 ~ 002F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

7.6 BLE Communication Packet (Device Time Set)

Com port Out Data count = 64

0000 ~ 000F : 61 C2 61 D0 28 00 08 00 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – 40 C0 40 0E 10 00 00 00

0020 ~ 002F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0030 ~ 003F : E7 07 06 01 10 13 05 08 – 79 54 78 64 80 70 00 00

Com port In Data count = 16

0000 ~ 000F : 61 C2 41 6C 00 00 08 00 – 40 C0 41 41 00 00 00 00

7.7 BLE Communication Packet (Device Time Get)

Com port Out Data count = 48

0000 ~ 000F : 61 C2 61 58 18 00 18 00 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – 41 C0 41 52 00 00 10 00

0020 ~ 002F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

Com port In Data count = 32

0000 ~ 000F : 61 C2 41 7C 00 00 18 00 – 41 C0 41 0A 00 00 10 00

0010 ~ 001F : E7 07 06 01 10 13 06 00 – 7A 54 78 64 80 70 00 00

7.8 BLE Communication Packet (VSC MODE Type 1 Set)

Com port Out Data count = 52

0000 ~ 000F : 61 C2 61 F6 1C 00 08 00 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – 70 C2 70 A7 04 00 00 00

0020 ~ 002F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0030 ~ 003F : 01 00 00 00 xx xx xx xx – xx xx xx xx xx xx xx xx

Com port In Data count = 16

0000 ~ 000F : 61 C2 41 6C 00 00 08 00 – 70 C2 41 73 00 00 00 00

7.9 BLE Communication Packet (VSC MODE Measuemenet Start)

Com port Out Data count = 48

0000 ~ 000F : 61 C2 61 B8 18 00 08 00 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – 64 C2 64 8A 00 00 00 00

0020 ~ 002F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

Com port In Data count = 16

0000 ~ 000F : 61 C2 41 6C 00 00 08 00 – 64 C2 41 67 00 00 00 00

7.10 BLE Communication Packet (VSC MODE Read)

VSC Mode Read (interval 100 ~ 200 mSec read 1 time)

10. VSC Mode Read Index: 0

Com port Out Data count = 48

0000 ~ 000F : 61 C2 61 80 18 00 40 02 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – 6A C2 6A D1 00 00 38 02

0020 ~ 002F : 00 00 00 00 01 00 00 00 – 00 00 00 00 00 00 00 00

Com port In Data count = 584

0000 ~ 000F : 61 C2 41 A6 00 00 40 02 – 6A C2 41 03 00 00 38 02

0010 ~ 001F : EC 8C AE 3F A0 2D AF 3F – F8 B1 AF 3F F0 81 B0 3F

0020 ~ 002F : 48 06 B1 3F 8C 35 B1 3F – FC A6 B1 3F 34 0E B3 3F

0030 ~ 003F : 50 F0 B4 3F 20 73 B7 3F – B4 F6 B8 3F C0 1B BA 3F

…

0220 ~ 022F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0230 ~ 023F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0240 ~ 024F : 00 00 00 00 00 00 00 00 – xx xx xx xx xx xx xx xx

10. VSC Mode Read Index: 1

Com port Out Data count = 48

0000 ~ 000F : 61 C2 61 82 18 00 40 02 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – 6A C2 6A D2 00 00 38 02

0020 ~ 002F : 01 00 00 00 01 00 00 00 – 00 00 00 00 00 00 00 00

Com port In Data count = 584

0000 ~ 000F : 61 C2 41 A6 00 00 40 02 – 6A C2 41 2F 01 00 38 02

0010 ~ 001F : 94 7C B7 3F 98 14 B7 3F – E8 68 B8 3F 3C 55 B9 3F

0020 ~ 002F : 84 1C B9 3F F0 98 B7 3F – 54 E5 B6 3F B0 01 B7 3F

0030 ~ 003F : 28 A3 B6 3F 98 14 B7 3F – 7C 8F B7 3F 90 E4 B7 3F

…

0220 ~ 022F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0230 ~ 023F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0240 ~ 024F : 00 00 00 00 00 00 00 00 – xx xx xx xx xx xx xx xx

10. VSC Mode Read Index: 2

Com port Out Data count = 48

0000 ~ 000F : 61 C2 61 84 18 00 40 02 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – 6A C2 6A D3 00 00 38 02

0020 ~ 002F : 02 00 00 00 01 00 00 00 – 00 00 00 00 00 00 00 00

Com port In Data count = 584

0000 ~ 000F : 61 C2 41 A6 00 00 40 02 – 6A C2 41 89 02 00 38 02

0010 ~ 001F : 34 E1 8A 3F A8 8D 88 3F – 6C 8E 87 3F F8 84 87 3F

0020 ~ 002F : 18 A2 86 3F 50 AC 85 3F – F8 27 85 3F 88 B6 84 3F

0030 ~ 003F : 58 7F 82 3F E0 80 80 3F – 18 CC 7C 3F B8 5D 78 3F
…

0220 ~ 022F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0230 ~ 023F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0240 ~ 024F : 00 00 00 00 00 00 00 00 – xx xx xx xx xx xx xx xx

10. VSC Mode Read Index: 3 (Fetch invalid index)

Com port Out Data count = 48

0000 ~ 000F : 61 C2 61 86 18 00 40 02 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – 6A C2 6A D4 00 00 38 02

0020 ~ 002F : 03 00 00 00 01 00 00 00 – 00 00 00 00 00 00 00 00

Com port In Data count = 584

0000 ~ 000F : 61 C2 41 6C 00 00 08 00 – 6A C2 41 CC 40 1F 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0020 ~ 002F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0030 ~ 003F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

…

0220 ~ 022F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0230 ~ 023F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0240 ~ 024F : 00 00 00 00 00 00 00 00 – xx xx xx xx xx xx xx xx

10. VSC Mode Read Index: 3

Com port Out Data count = 48

0000 ~ 000F : 61 C2 61 86 18 00 40 02 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – 6A C2 6A D4 00 00 38 02

0020 ~ 002F : 03 00 00 00 01 00 00 00 – 00 00 00 00 00 00 00 00

Com port In Data count = 584

0000 ~ 000F : 61 C2 41 A6 00 00 40 02 – 6A C2 41 C0 03 00 38 02

0010 ~ 001F : 80 0D 7E 3F A8 B7 7E 3F – 10 5B 80 3F 50 F2 80 3F

0020 ~ 002F : 4C 5A 81 3F E0 DD 82 3F – F0 9A 83 3F 68 99 85 3F

0030 ~ 003F : 38 1C 88 3F 58 F3 8B 3F – D8 7E 8F 3F F0 C8 91 3F

…

0220 ~ 022F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0230 ~ 023F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0240 ~ 024F : 00 00 00 00 00 00 00 00 – xx xx xx xx xx xx xx xx

10. VSC Mode Read Index: 4

Com port Out Data count = 48

0000 ~ 000F : 61 C2 61 88 18 00 40 02 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – 6A C2 6A D5 00 00 38 02

0020 ~ 002F : 04 00 00 00 01 00 00 00 – 00 00 00 00 00 00 00 00

Com port In Data count = 584

0000 ~ 000F : 61 C2 41 A6 00 00 40 02 – 6A C2 41 94 04 00 38 02

0010 ~ 001F : 0C C1 B4 3F 9C 4F B4 3F – 70 0D B4 3F 18 89 B3 3F

0020 ~ 002F : 38 A6 B2 3F A0 8A B1 3F – 50 D9 AD 3F 80 56 AB 3F

0030 ~ 003F : 64 74 A9 3F 48 92 A7 3F – 18 5B A5 3F D8 C3 A4 3F

…

0220 ~ 022F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0230 ~ 023F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

0240 ~ 024F : 00 00 00 00 00 00 00 00 – xx xx xx xx xx xx xx xx

7.11 BLE Communication Packet (VSC MODE Stop)

11. VSC Mode Stop

Com port Out Data count = 48

0000 ~ 000F : 61 C2 61 BC 18 00 08 00 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – 65 C2 65 8C 00 00 00 00

0020 ~ 002F : 00 00 00 00 00 00 00 00 – 00 00 00 00 00 00 00 00

Com port In Data count = 16

0000 ~ 000F : 61 C2 41 6C 00 00 08 00 – 65 C2 41 68 00 00 00 00

7.12 BLE Disconnect

Com port Out Data count = 24

0000 ~ 000F : 2F C2 2F 20 00 00 00 00 – 00 00 00 00 00 00 00 00

0010 ~ 001F : 00 00 00 00 00 00 00 00 – xx xx xx xx xx xx xx xx

Com port In Data count = 8

0000 ~ 000F : 2F C2 41 32 00 00 00 00 – xx xx xx xx xx xx xx xx
