How to setting parameters on the VSG102 device?
Please go to Apple Store, download “VSG102Setting” tool。

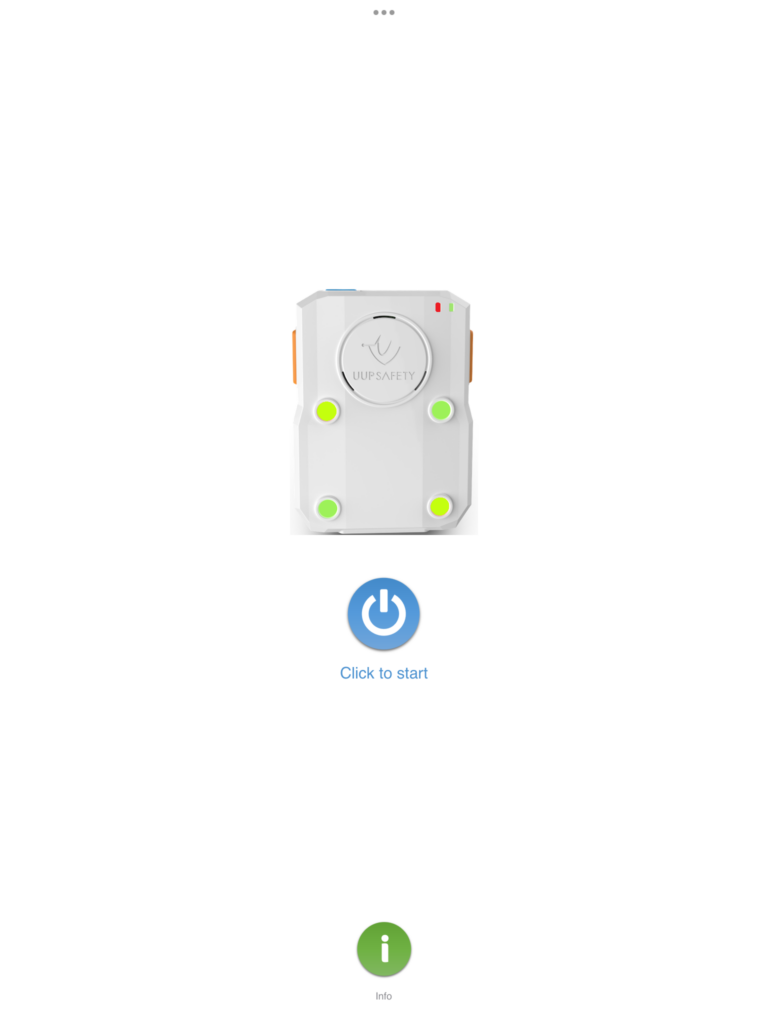

Open the VSG102 Setting App。

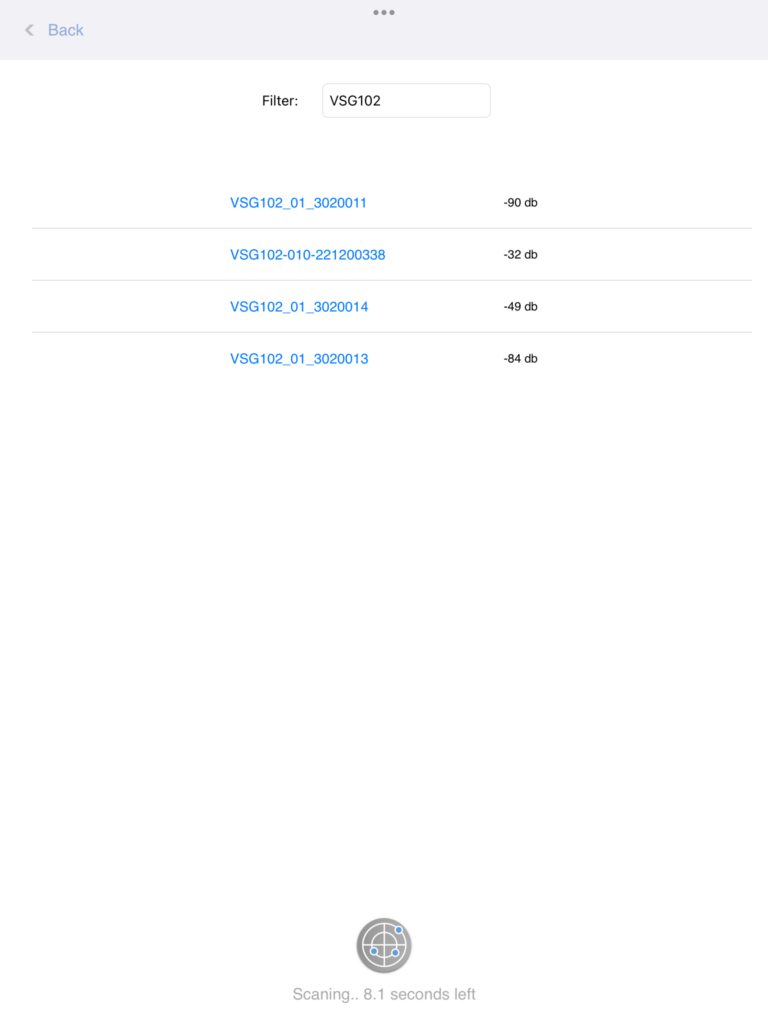

Select a device , as VSG102_********。

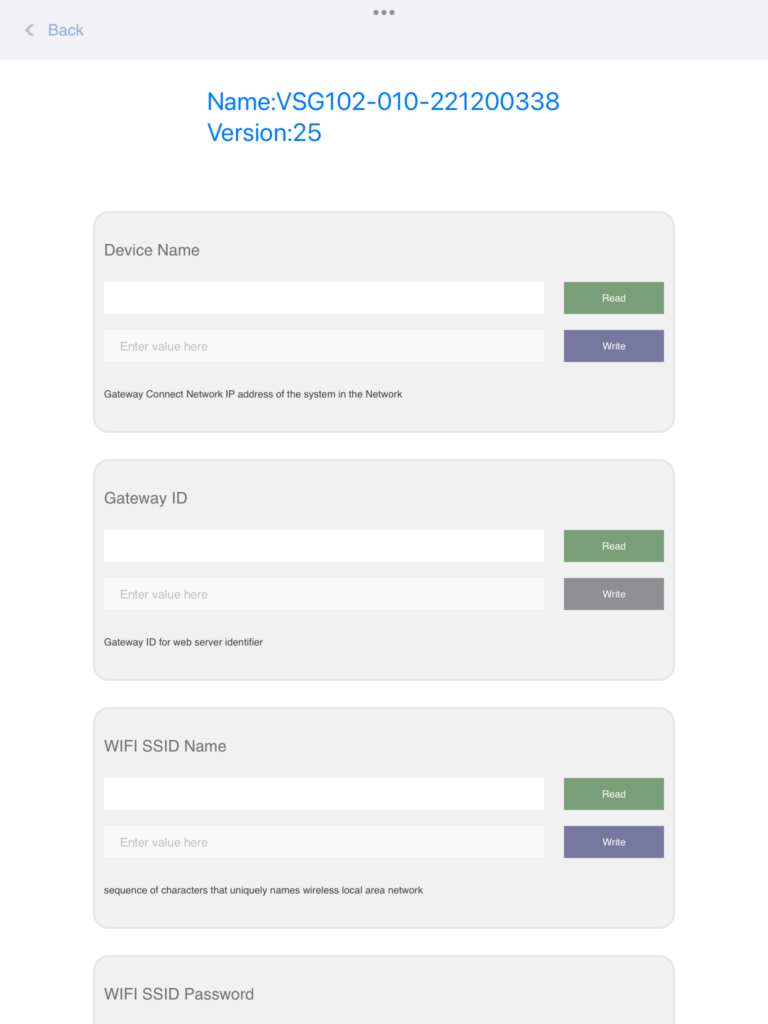

Connect the VSG102 device after will show the Device name and Device version。
In the “Device Name” block, clicking the “read” button will display the current device parameters. Pressing the “write” button will allow you to modify the content in the edit box, and clicking the “write” button will change the BLE display name.
In the “Gateway ID” block, click the “read” button will display the current device parameters. Press the “write” button field changes the edit box content, and click the “write” button to change the Web Server display ID。
In the “SIM PIN Code” block, click the “read” button will display the current device parameters. Press the “write” button field changes the edit box content, and click the “write” button to change the SIM PIN Code (If you don’t set the “SIM PIN Code”, you don’t need to change it)。
12. In the “APN(Access Point Name)” block, click the “read” button will display the current device parameters. Press the “write” button field changes the edit box content, and click the “write” button to change the APN 。
APN Example table:
Telecom | APN |
AT &T | Phone |
T-Mobile | Fast.t-mobile.com |
Verizon | vzwinternet |
CHT | internet |
Before setting up IP and port, go to “Setting Mode” block, switch “user mode” to “engineer mode”, edit box type “45110164” and click “write” button。
In the “Connect Network IP Address” block, click the “read” button will display the current device parameters. Press the “write” button field changes the edit box content, and click the “write” button to change the “Connect Network IP Address”。
15. In the “Connect Network IP Port Number” block, click the “read” button will display the current device parameters. Press the “write” button field changes the edit box content, and click the “write” button to change the “Connect Network IP Port Number”。
Setting parameters finish, Reset Device。
