How to setting parameters on the VSG101 device?

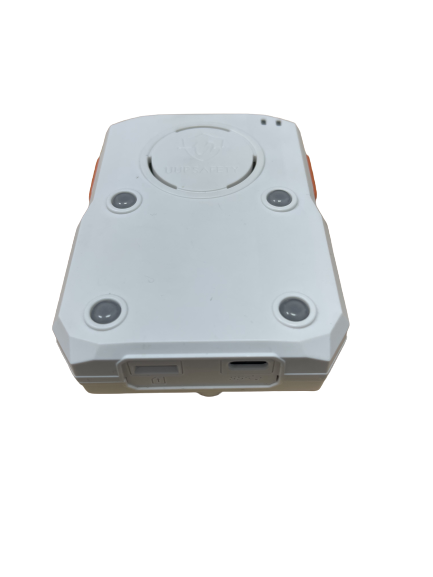

- Put the VSG101 device near by your mobile phone or tablet。

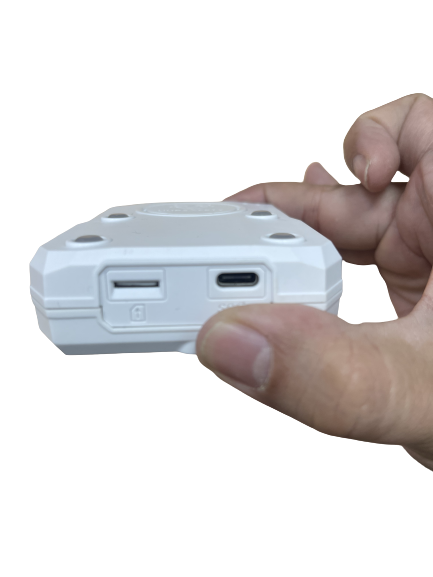

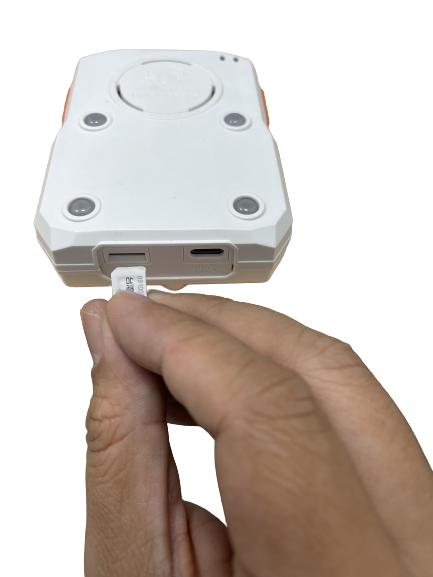

2. Insert SIM card to the VSG101 device, as illustrated。
3. Verify that the SIM card inserted the VSG101 device correctly。

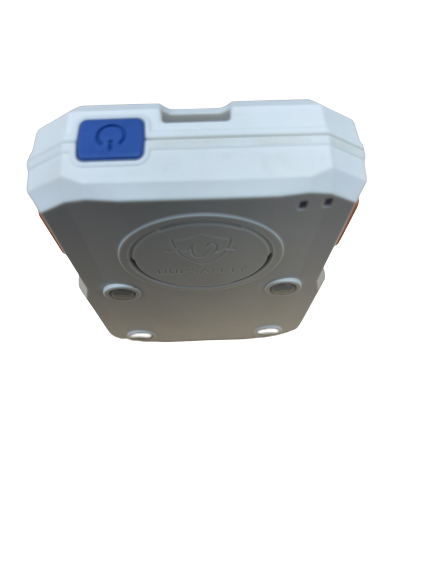

4. Press the “power key” over 3 seconds, and the VSG101 will be powering。

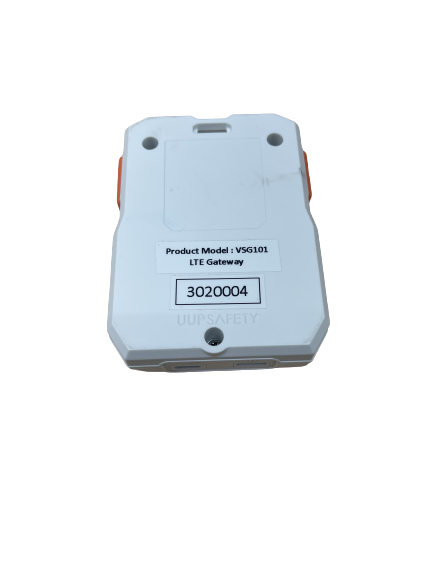

5. The back of the device will display the default serial number and the BLE name VSG101_01_*********。
5. Please go to Apple Store, download “VSG101Setting” tool。

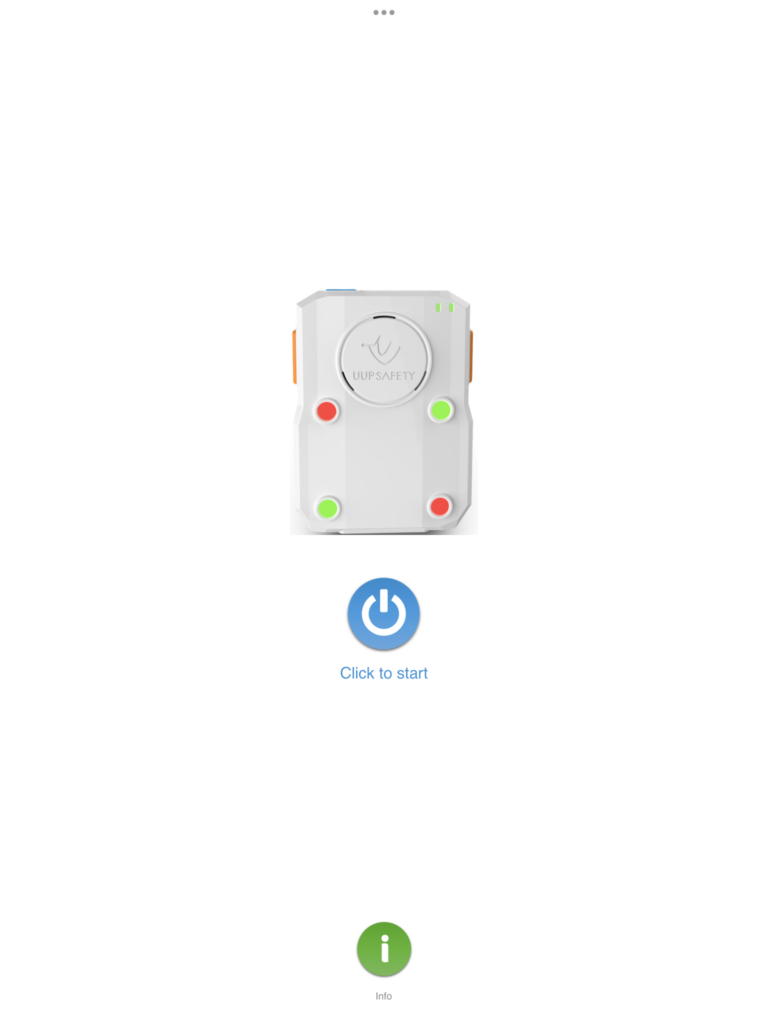

6. Open the VSG101 Setting App。

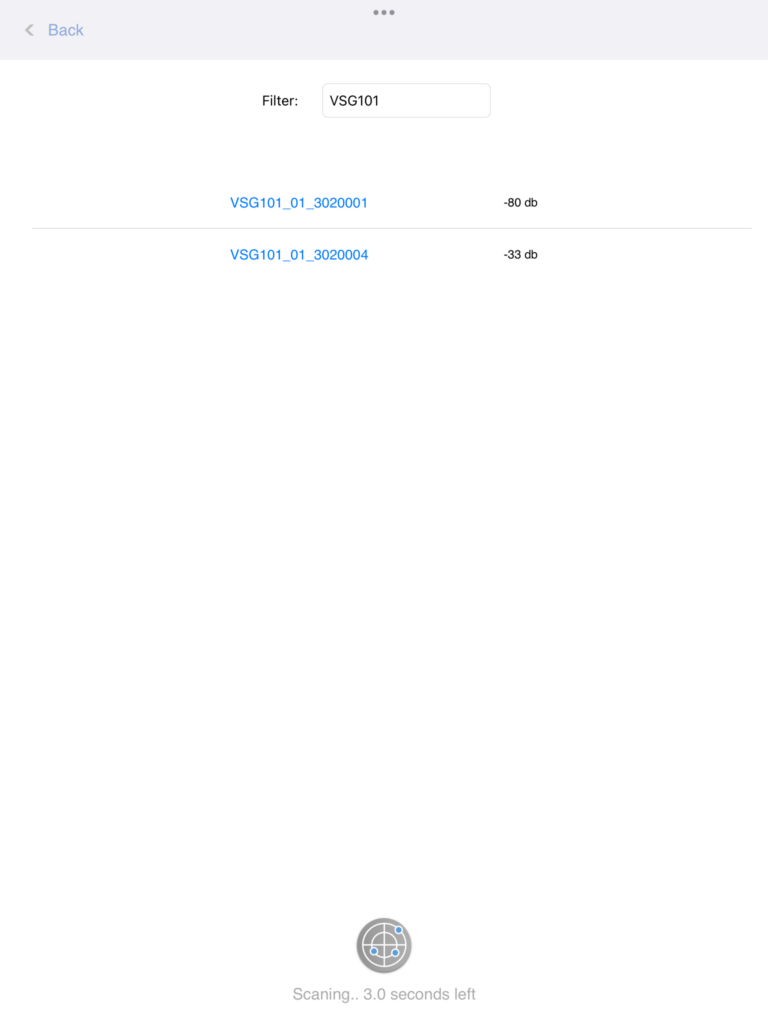

7. Select a device , as VSG101_01_********。

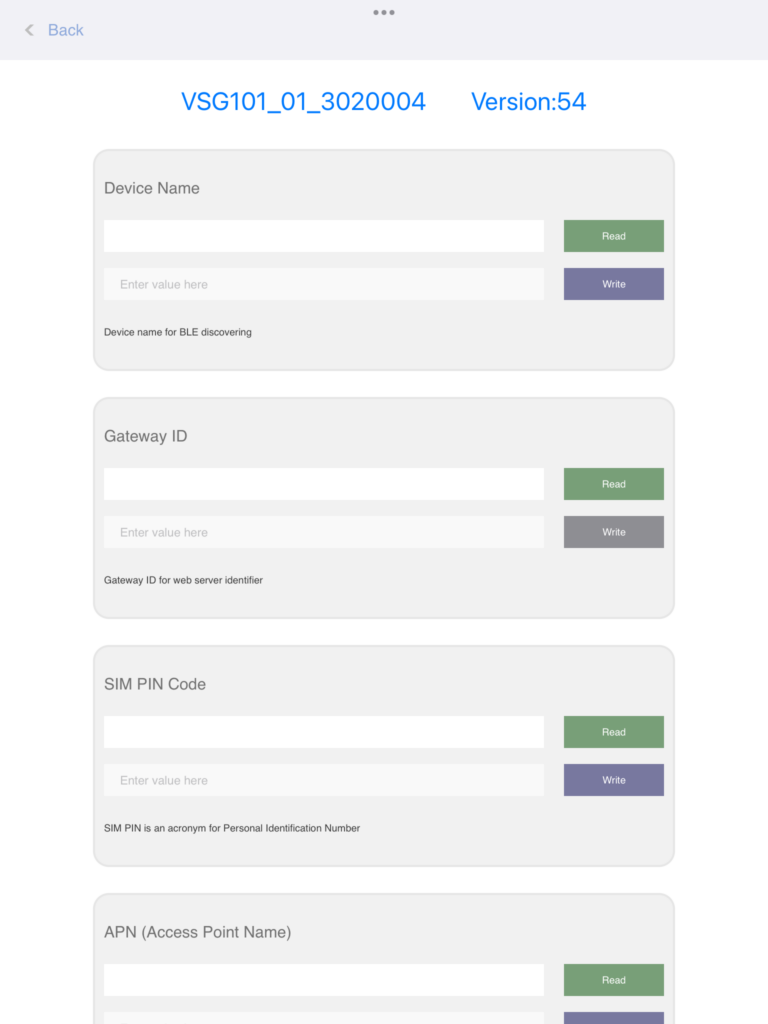

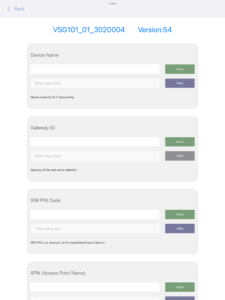

8. Connect the VSG101 device after will show the Device name and Device version。

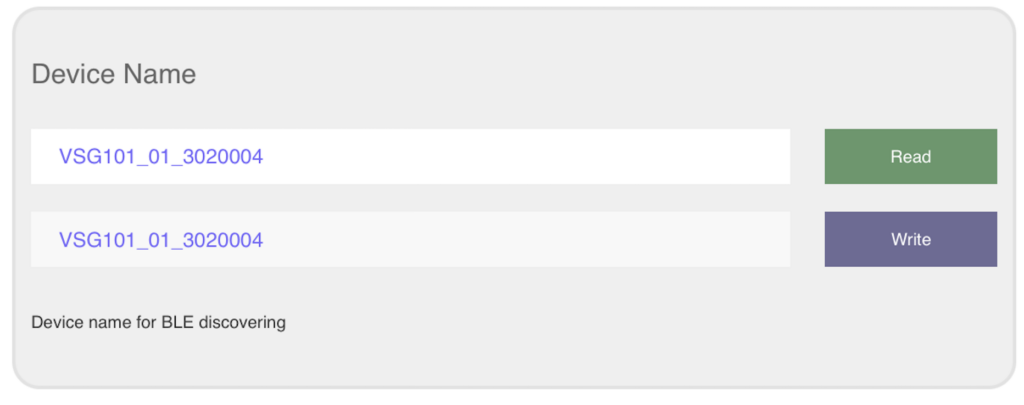

9. In the “Device Name” block, click the “read” button will display the current device parameters. Press the “write” button field changes the edit box content, and click the “write” button to change the BLE display name。

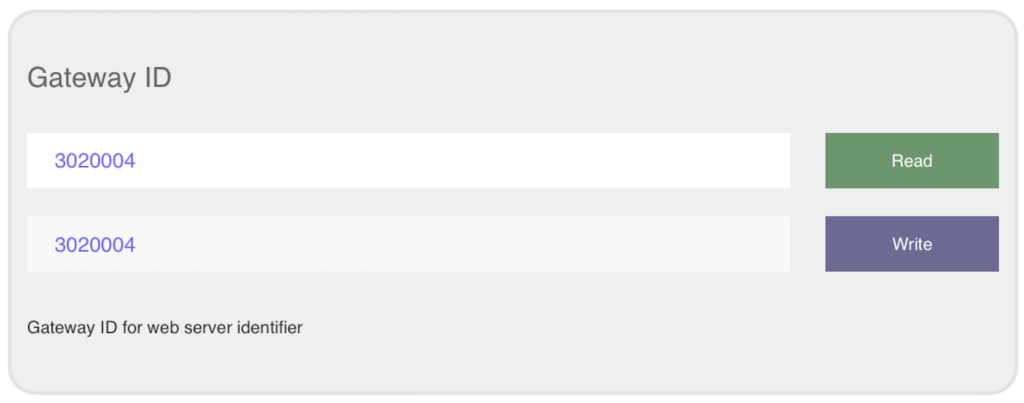

10. In the “Gateway ID” block, click the “read” button will display the current device parameters. Press the “write” button field changes the edit box content, and click the “write” button to change the Web Server display ID。

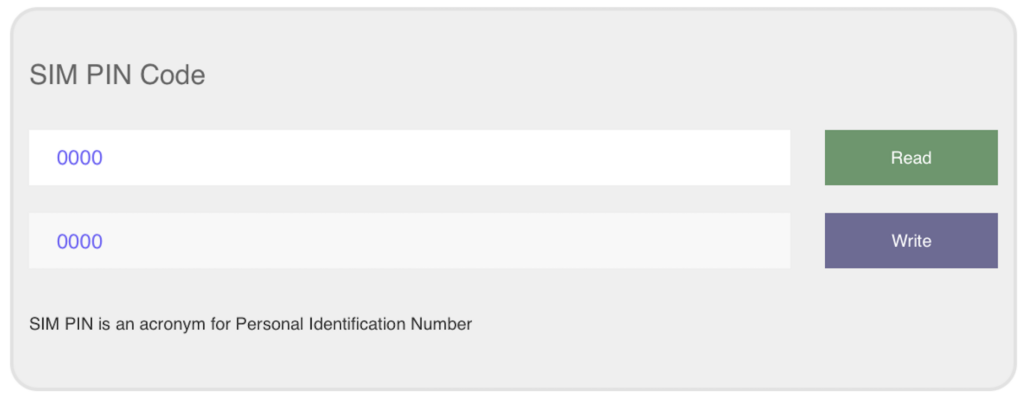

11. In the “SIM PIN Code” block, click the “read” button will display the current device parameters. Press the “write” button field changes the edit box content, and click the “write” button to change the SIM PIN Code (If you don’t set the “SIM PIN Code”, you don’t need to change it)。

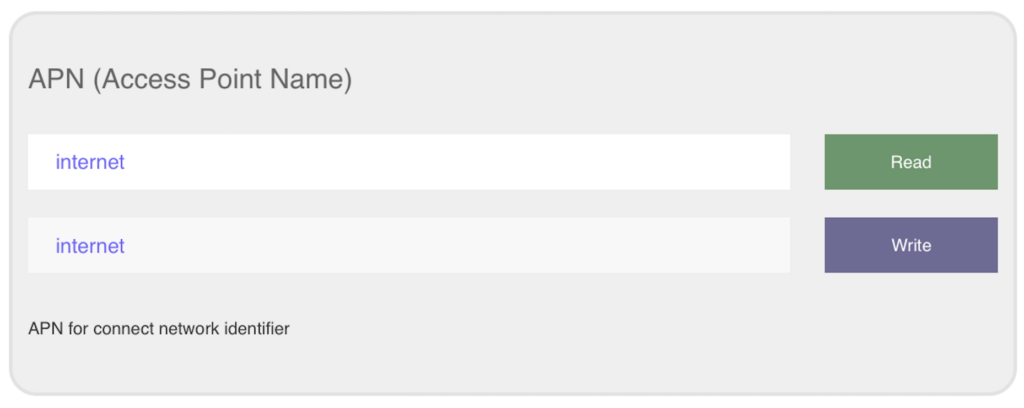

12. In the “APN(Access Point Name)” block, click the “read” button will display the current device parameters. Press the “write” button field changes the edit box content, and click the “write” button to change the APN 。
APN Example table:
Telecom | APN |
AT &T | Phone |
T-Mobile | Fast.t-mobile.com |
Verizon | vzwinternet |
CHT | internet |

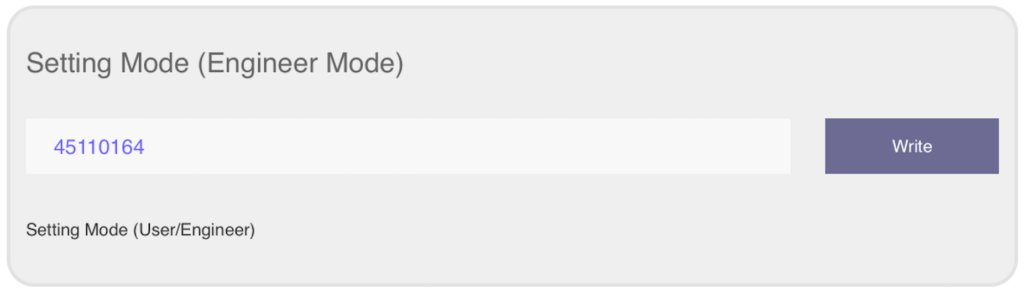

13.Before setting up IP and port, go to “Setting Mode” block, switch “user mode” to “engineer mode”, edit box type “45110164” and click “write” button。

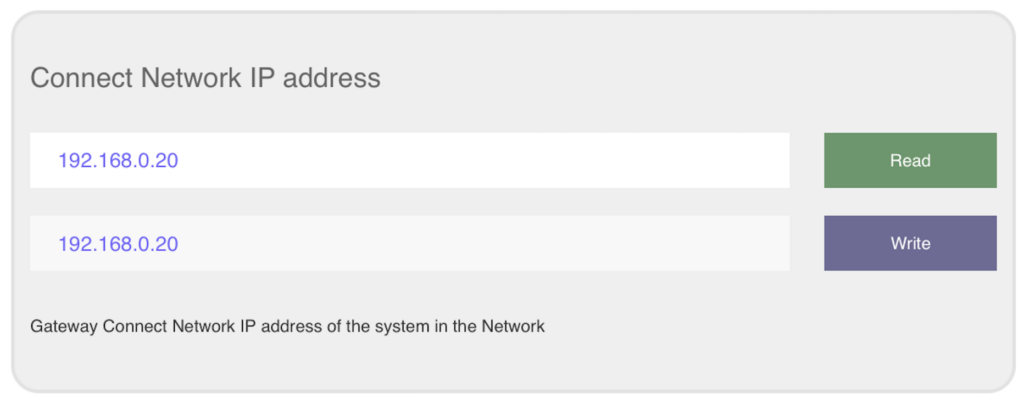

14. In the “Connect Network IP Address” block, click the “read” button will display the current device parameters. Press the “write” button field changes the edit box content, and click the “write” button to change the “Connect Network IP Address”。

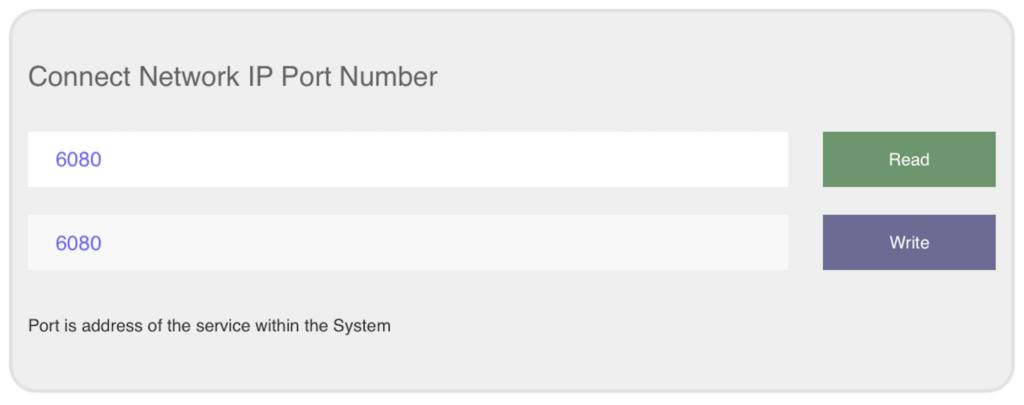

15. In the “Connect Network IP Port Number” block, click the “read” button will display the current device parameters. Press the “write” button field changes the edit box content, and click the “write” button to change the “Connect Network IP Port Number”。

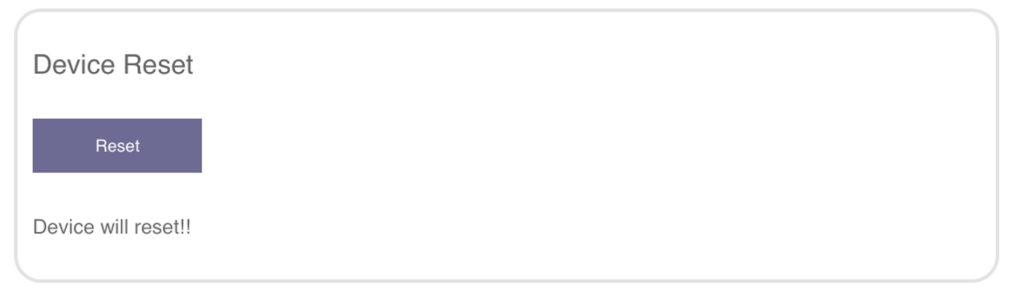

16. Setting parameters finish, Reset Device。
VSG101 Power On
How to setting parameters on the VSG101 device demo video?
