VSH101 Firmware update

VSH101 is an exceptional chest-pad type 1-lead ECG (Electrocardiogram) device designed to revolutionize patient monitoring. Unlike traditional handheld or watch-type ECGs, this innovative device offers unparalleled convenience and accuracy. To ensure optimal functionality and access to the latest features, users can update the firmware of the VSH101 device using the dedicated software, VSH101Update.
Updating the firmware of the VSG101 is a straightforward process that can be accomplished by following a few simple steps.

Update your VSH101 Device

    You  can get the latest version firmware to update VSH101.

1. Please scan the below QR code for download  “VSH101 Update” tool from Apple Store。

2. Make sure the device have 50 % battery capacity at least or plugged in the USB type-C charger。

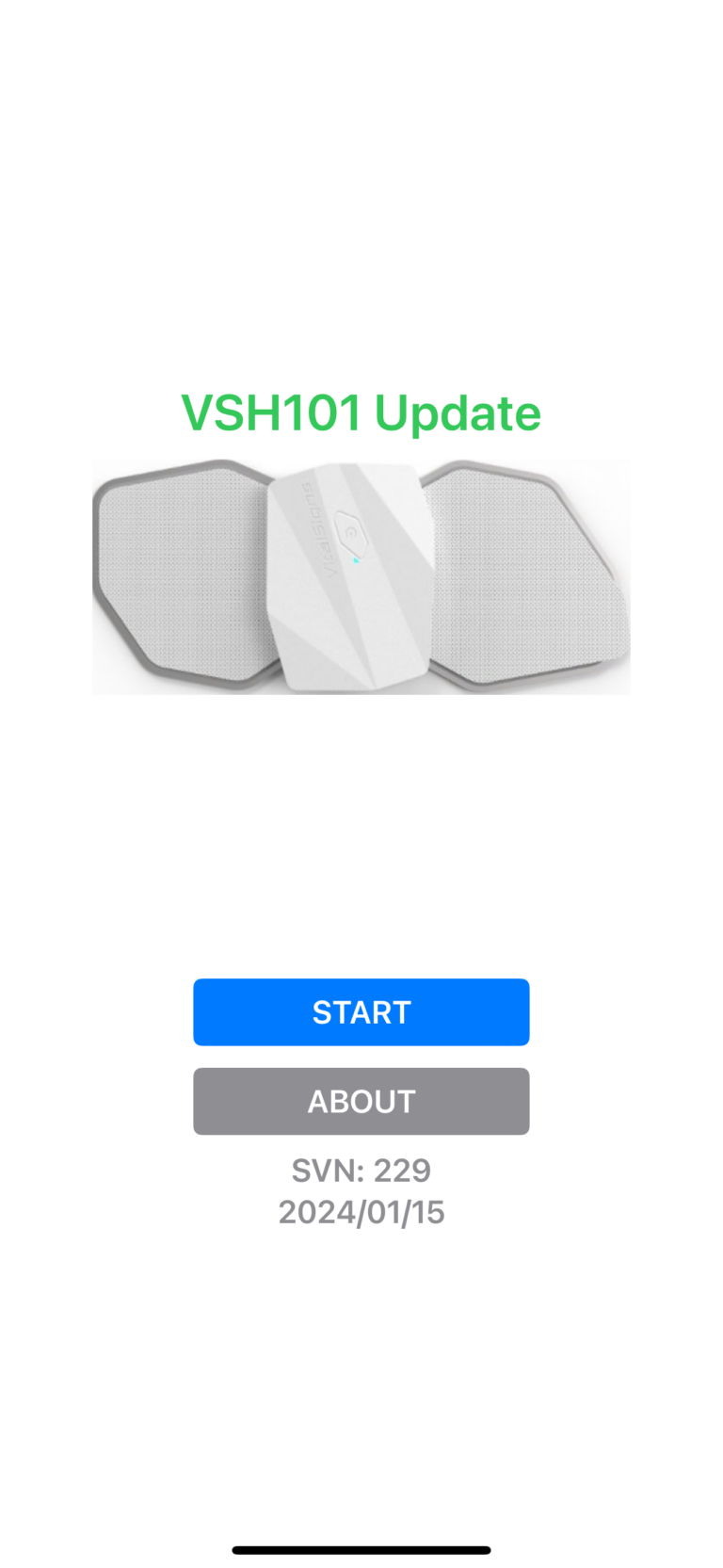

3. Open the “VSH101 Update” APP and click the “START”

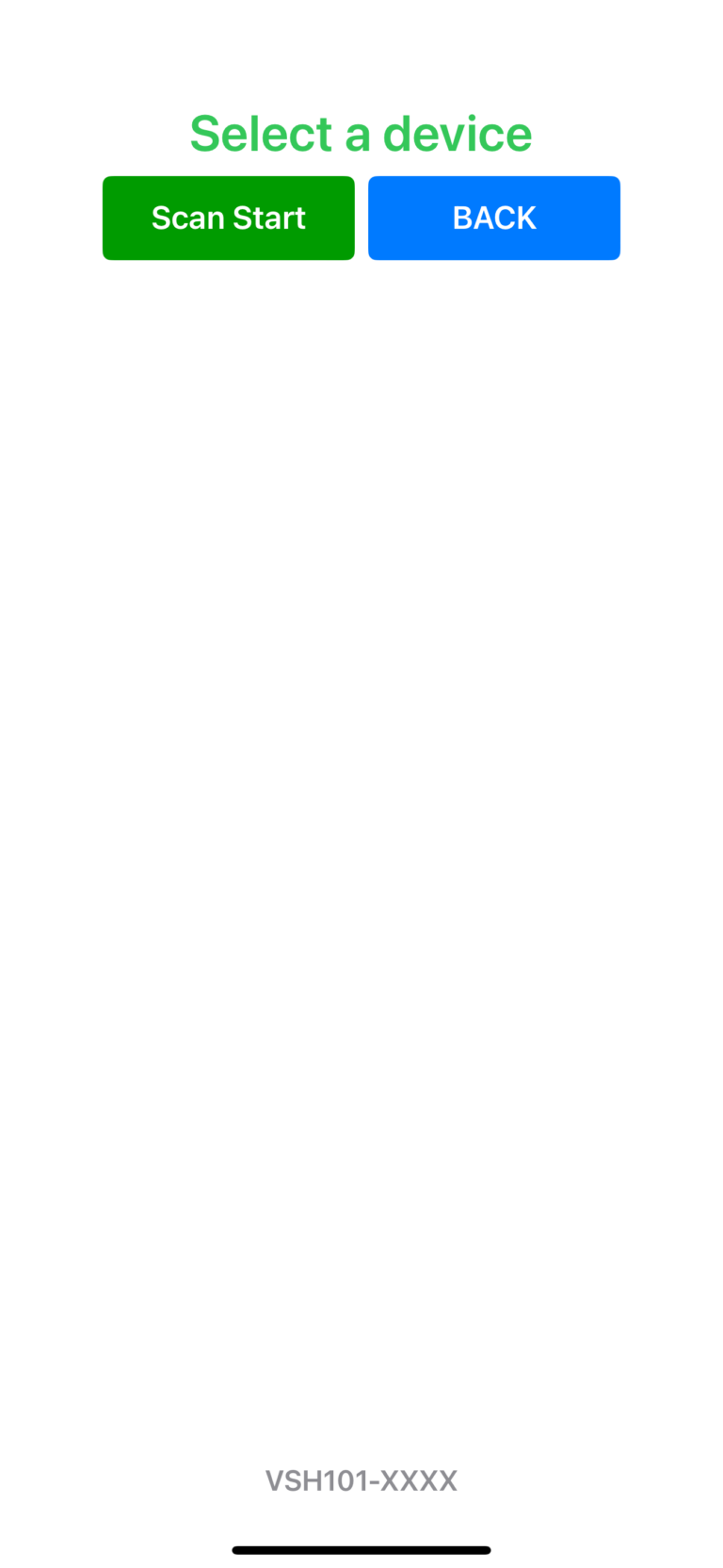

4.Click the “Scan Start” for select a device

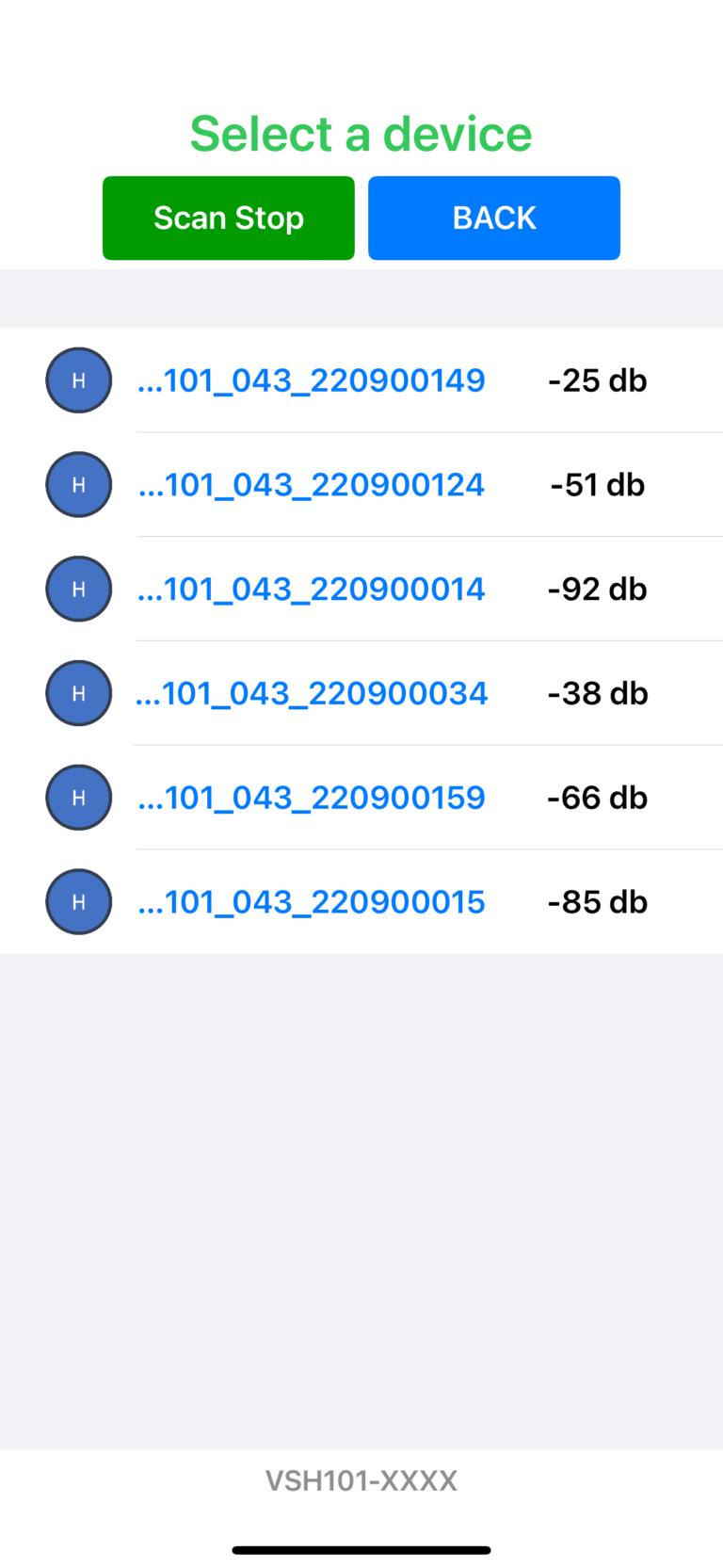

5.Select a device, as VSH101_**_********

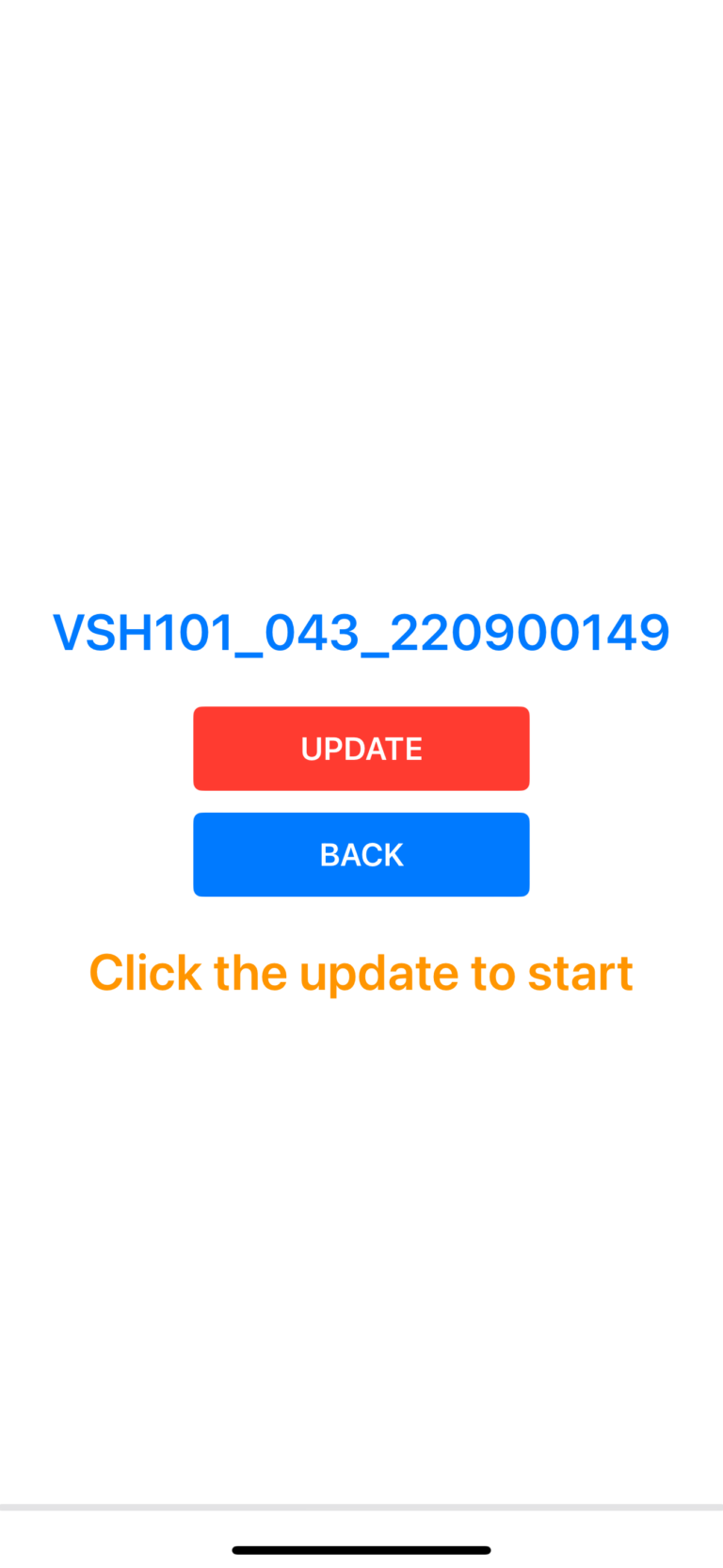

6.Make sure the selected device and update it

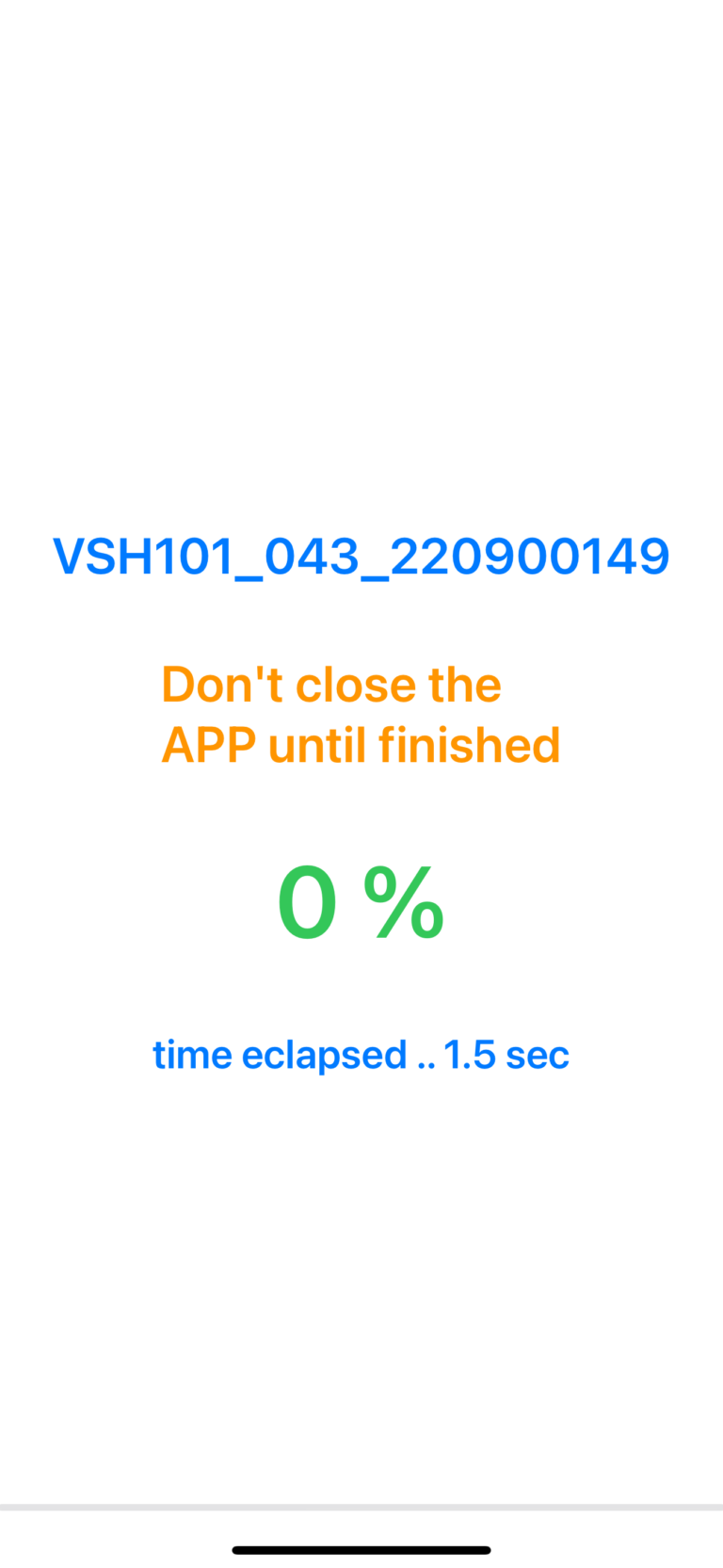

7.Start update and waiting about two minutes

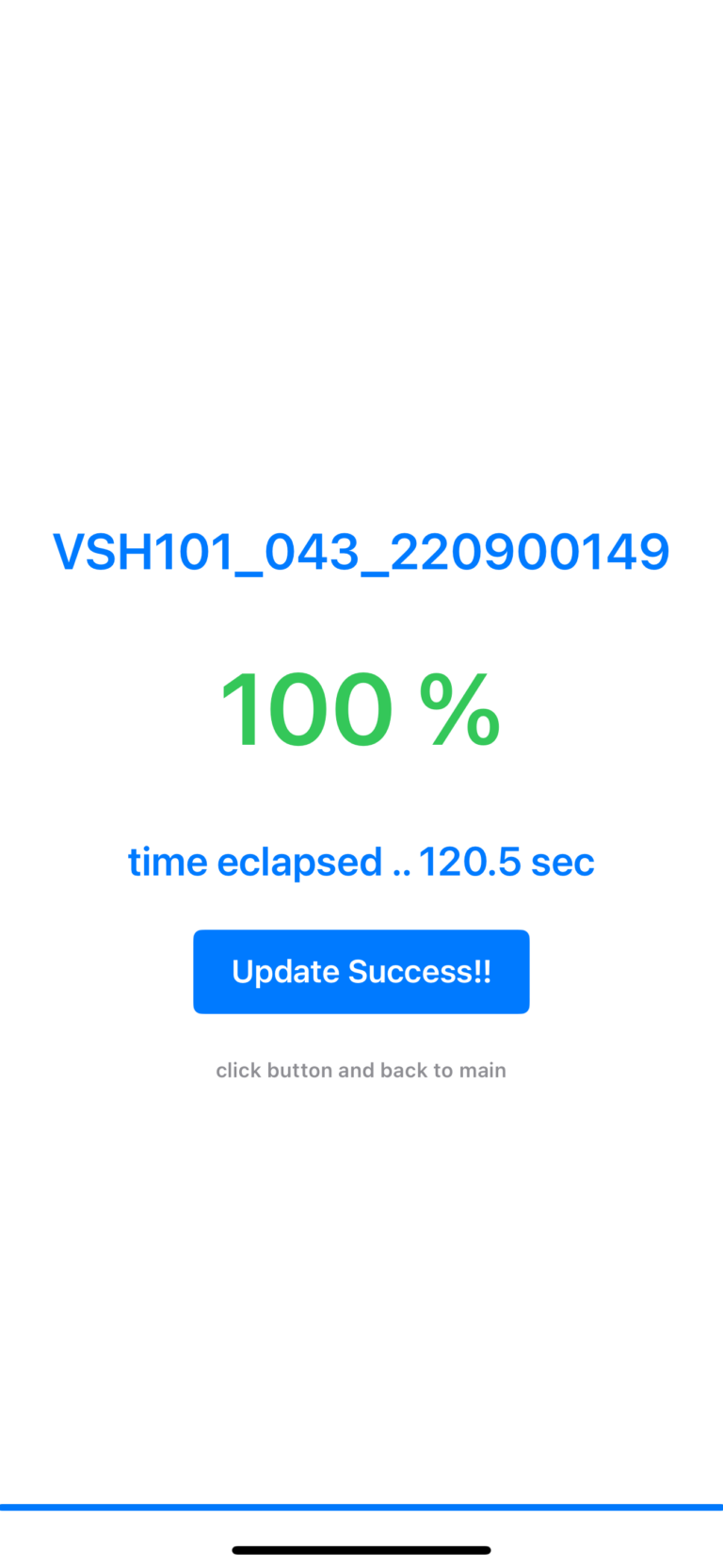

8.Finish update。

VSH101 Update Demo Video

Need more help with updating

Make sure the VSH101 device indicator is flashing。

If not, Please open “VSH101 Update” APP check Scan item have the “OTA_VSH101”

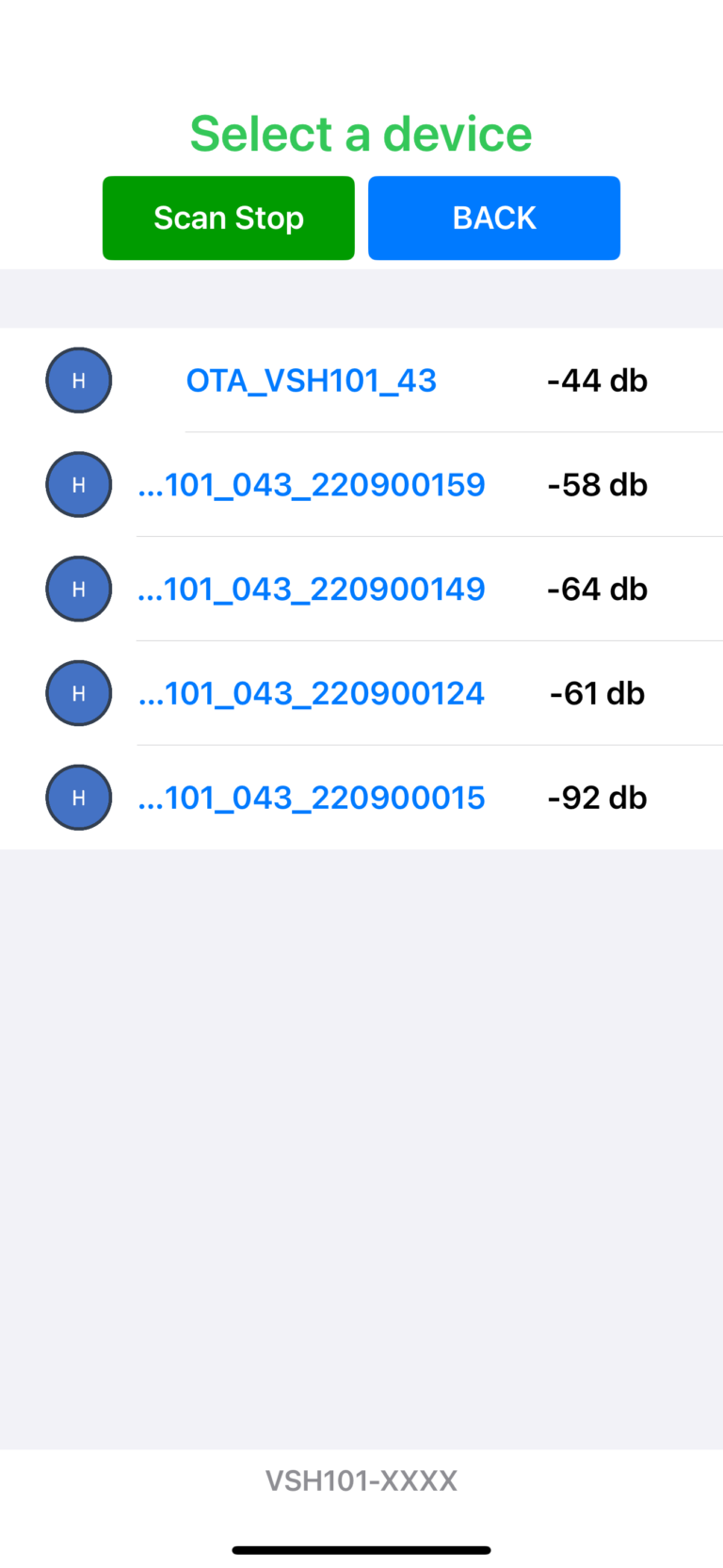

1.Select a device, OTA_VSH101_XX

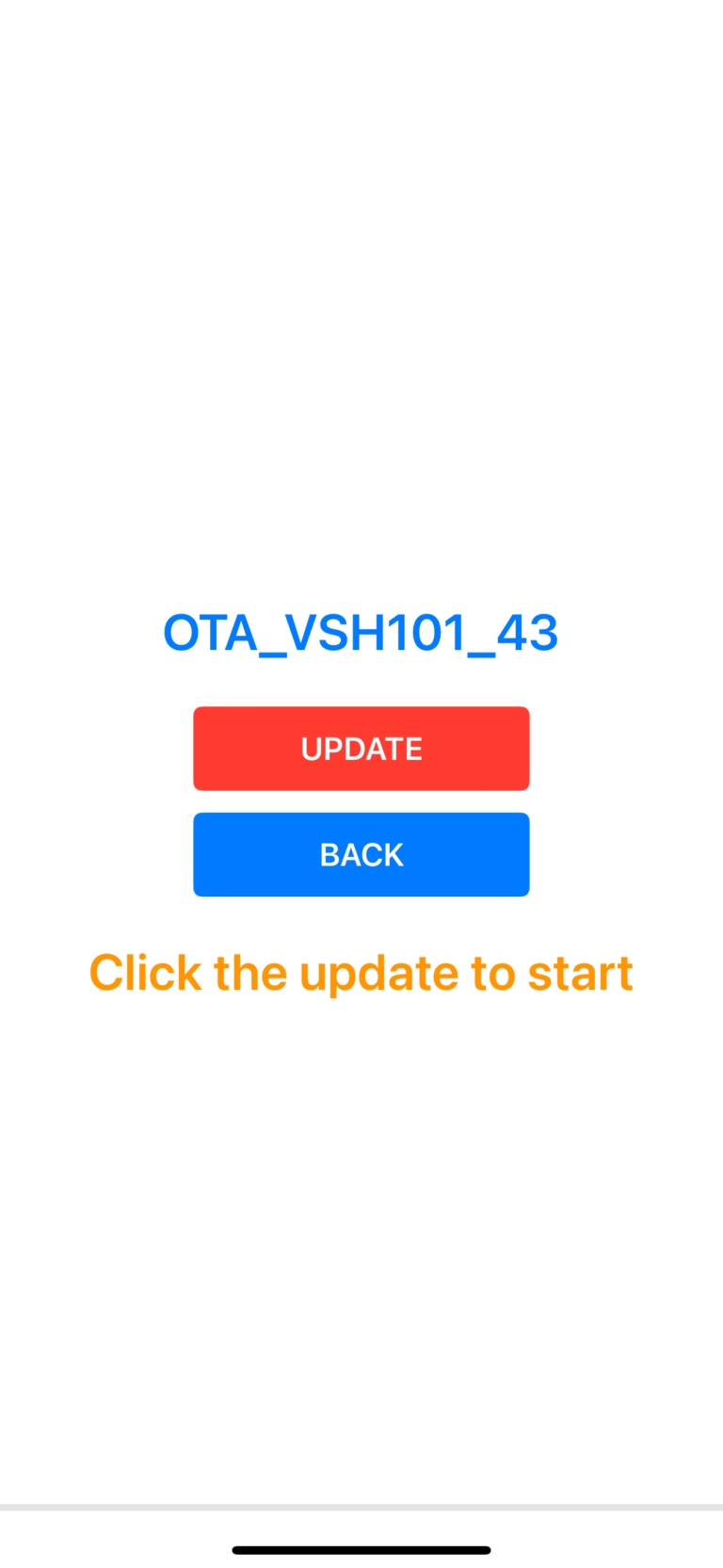

2.Make sure the selected device and update it

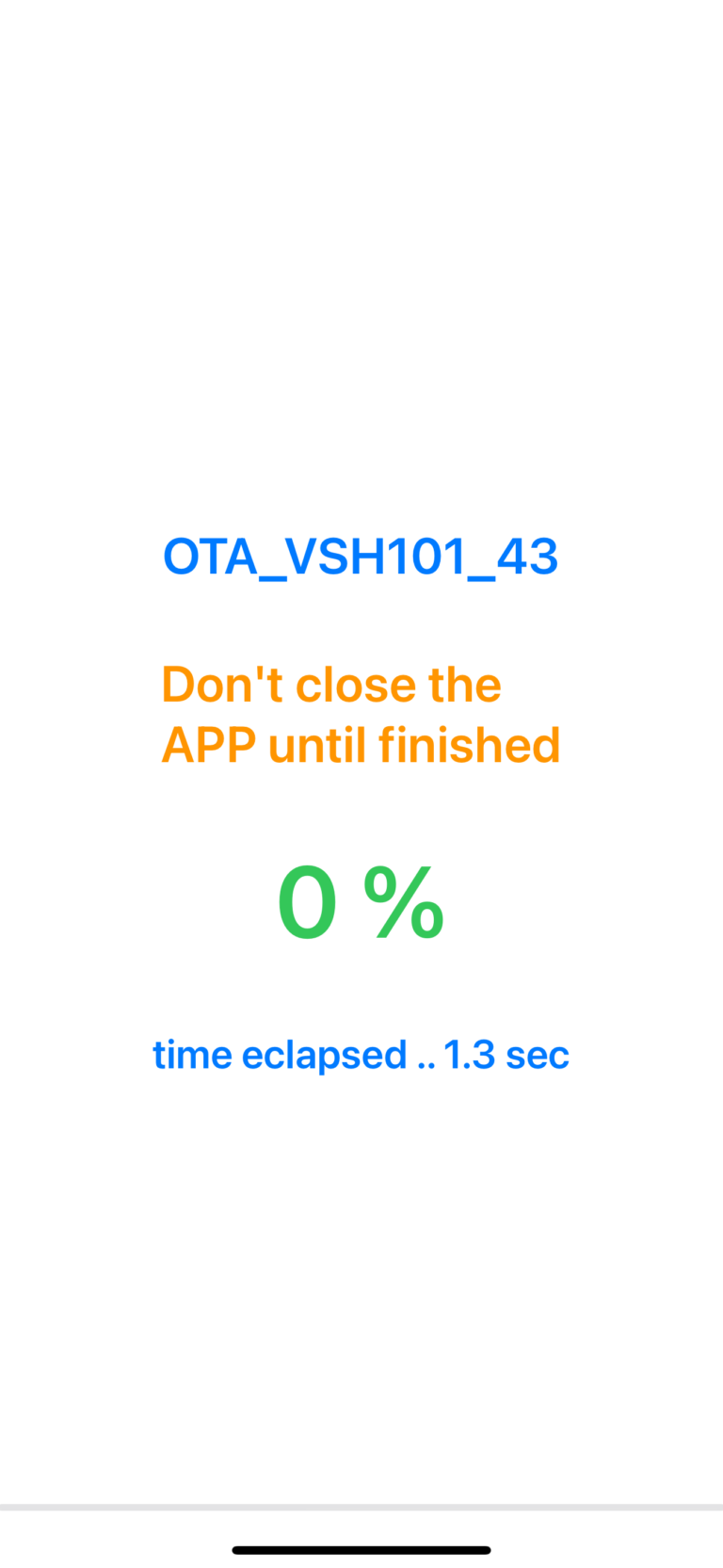

3.Start update and waiting about two minutes

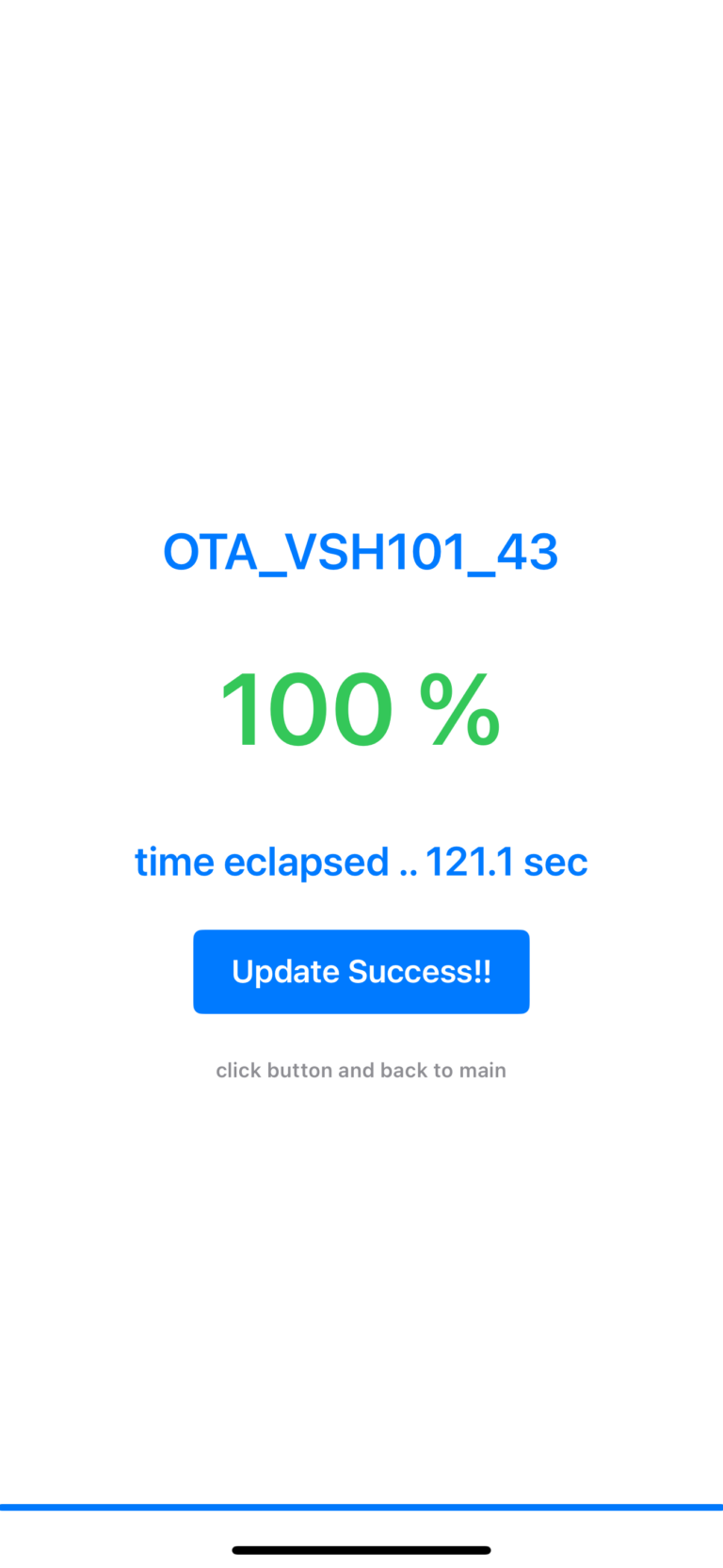

4.Finish update
